<ul id="ks4ce"></ul> <ul id="ks4ce"></ul> <ul id="ks4ce"></ul> 1st G Check weigher is used to check whether the single bag weight is conformed to the preset weight or not and auto remove the unqualified products by the rejection device.
1. Intelligent construction, auto program setting for easy operation.
2. Production records in details.
3. Quick Release design
4. PLC control system with industry touch screen panel.

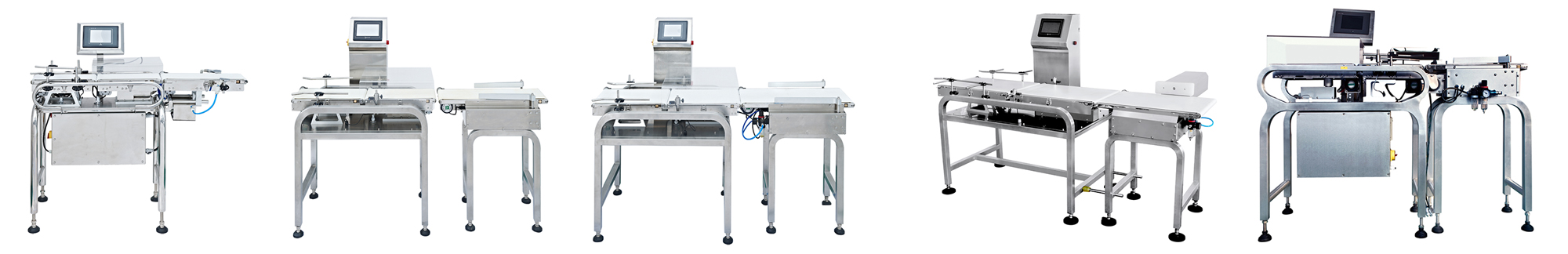

| Model | JW-C200 | JW-C1000 | JW-C2000 | JW-C3000 | JW-C6000 |
| Identify Code | C200-2-1 | C1000-1-1 | C2000-1-1 | C3000-1-1 | C6000-1-1 |
| Weighing Range | 5-200g | 10-1000g | 10-2000g | 10-3000g | 10-6000g |
| Accuracy | XIII(1) | XIII(1) | XIII(1) | XIII(1) | XIII(1) |
| Max.Belt Speed | 55m/min | 52m/min | 52m/min | 40m/min | 40m/min |
| Max.Speed | 100PCS | 80PCS | 80PCS | 50PCS | 40PCS |
| Belt Size(mm) | 350(L)x150(W) | 450(L)x220(W) | 450(L)x300(W) | 650(L)x400(W) | 650(L)x440(W) |
| Control Panel | 7”Touch Screen | ||||

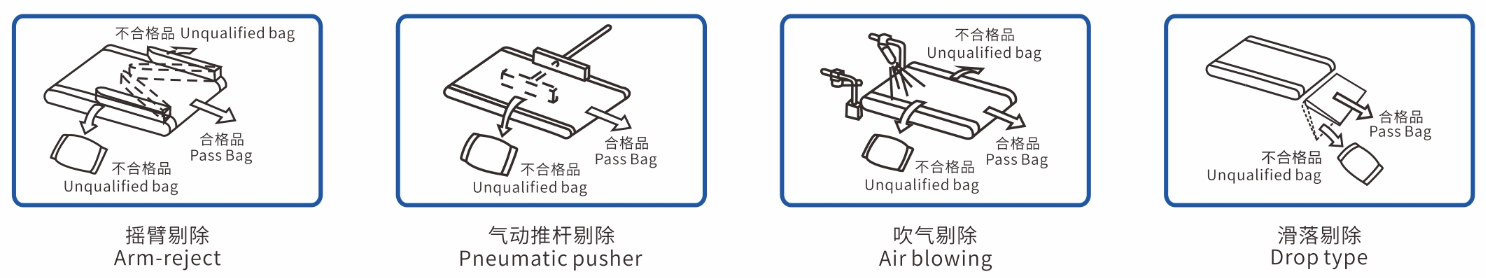

| Reject Method | Air blowing | Air blowing/Air-reject/Pneumatic pusher/Slide type | Pneumatic pusher/Slide type | ||
| Power Requirement | 220V/400W /50/60Hz/2A | 220V/400W /50/60Hz/2A | 220V/400W /50/60Hz/2A | 220V/600W /50/60Hz/3A | 220V/600W /50/60Hz/3A |
| Packing Dimension(mm) | 1250(L)x570(W )x1150(H) | 980(L)x800(W) x1290(H) | 980(L)x860(W )x1290(H) | 1600(L)x950(W) x1490(H) | 1600(L)x950(W) x1490(H) |
| Gross Weight | 100Kg | 180Kg | 190Kg | 260Kg | 260Kg |
