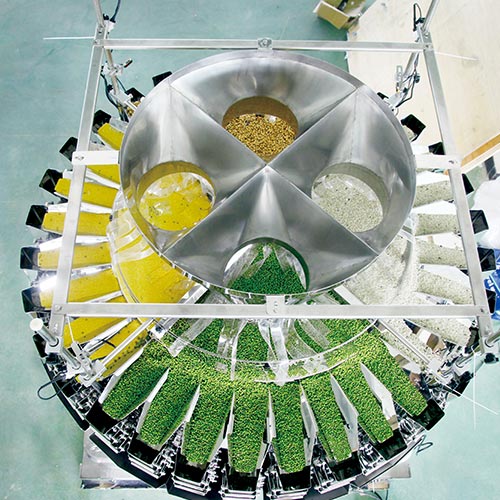

<ul id="ks4ce"></ul> <ul id="ks4ce"></ul> <ul id="ks4ce"></ul> Mini 32 heads mixing weigher is suitable for weighing small granules such as seeds, tea, coffee beans etc.
1. Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.
2. More hopper to combination, higher accuracy.
3. The weight of the mixing can be automatically compensated by the last products.
4. High accuracy and tailored load cell.
5. Intelligent alarm diagnosis.
6. High speed stagger dump function.
7. New Modular and CAN bus technology, more efficient and stable.
8. Modbus Industry communication protocol.

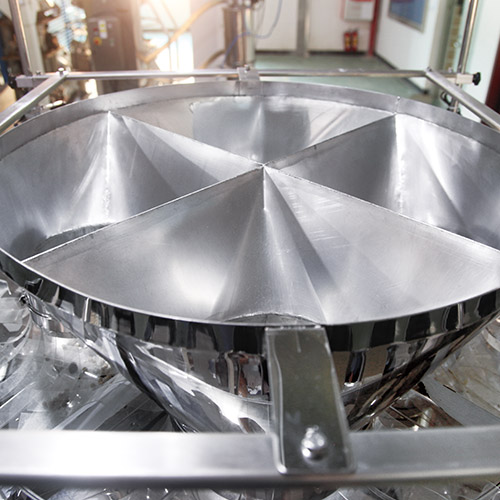

1. Upper storage funnel is divided to weight two different products.
2. Separate main vibrator, control the thickness of product independently.
3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4. Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.
5. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.
6. Options: mini 24 head mixing weigher and 32 headweigher for mixing 4 products.
| Model | JW-A24 | JW-A24 | JW-A32 | JW-A32 |
| Identify Code | A24-2-1 | A24-2-2 | A32-2-1 | A32-2-3 |
| Weighing Range | 5-240g | 5-240g | 5-240g | 10-2000g |
| Accuracy | X(0.5) | X(0.5) | X(0.5) | X(0.5) |
| Max Speed | 60P/M(Mix 4 Products) | 60P/M(Mix 3 Products) | 60P/M(Mix 4 Products) | 60X4P/M(Mix 4 Products) |
| Hopper Volume | 0.5L | 0.5L | 0.5L | 1.6L |
| Control Panel | 10.1”Touch Screen | |||
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |||
| Driving System | Step Motor | |||
| Power Requirement | 220V/1500W/50Hz/60Hz/10A | 220V/2500W/50/60Hz/15A | 220V/2500W/50/60Hz/18A | |

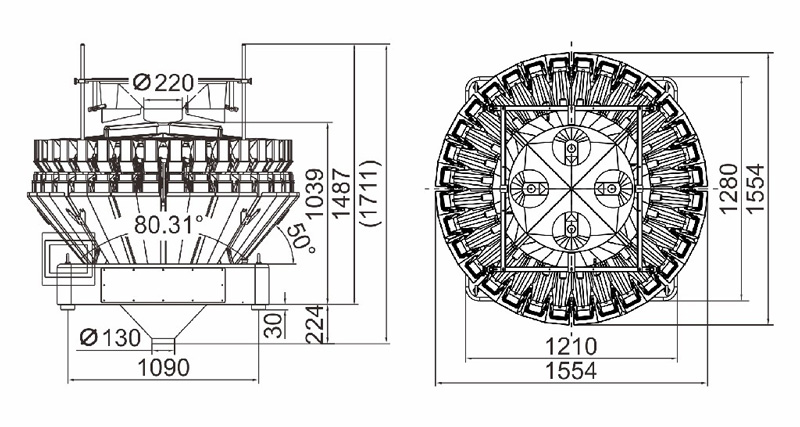

| Packing Dimension(mm) | 1800(L)x1250(W)x1110(H) | 2100(L)x1480(W)x1130(H) | 3000(L)x2100(W)x1400(H) | |
| Gross Weight | 440kg | 600kg | 1300kg | |
